    HerdWhistle™ BigEye™

    CAD $ 0.00 0.0 CAD CAD $ 0.00

    CAD $ 0.00

    Contact us for pricing

      This combination does not exist.

      Product Description

      The ultimate ‘all in one’ precision tool for the livestock industry, the BigEye™ offers a comprehensive solution for real-time phenotypic evaluation. Equipped with multispectral camera technology and uniquely in-built Ultra High Frequency / Low Frequency tag readers. Its 3D camera and thermal camera capabilities provide accurate identification, efficient monitoring, and crucial insights into animal health. Embrace the future of PRECISION livestock management with the BigEye™ and unlock a new level of productivity through data capture to action.

      Features

      • Rugged and Shock resistant build
      • Robust mounting design, boltable to any vertical surface where data capture is required
      • Equipped with 3D Camera. 1080P HD, enables clear HD image capture
      • Equipped with thermal Camera with the self IR FPA detector
      • RFID Technology built-in with additional and optional ports for external antennas
      • Infrared Thermograph Imaging provides early warning of at risk of disease.
      • Infrared Thermograph Imaging detects pregnancy in livestock
      • 3D camera with analytics generates weight prediction without a scale
      • RFID Technology scans individual animals generating continuous activity monitoring data
      • Edge computing module executes proprietary algorithms and analytics
      • Cloud synchronization for pertinent livestock data reporting and device updates

      Specifications

      Scanning Technology: UHF / Thermal Imaging
      Connectivity:  Cellular LTE, GPS
      Read Range:   Up to 1 meter
      Frequency: 860-960 MHz
      Controls: Animal activated
      Dimensions: L: 80cm  (31.5") H:  80cm (31.5")  W: 12.45cm (4.9") Weight: 5000g (5kg)

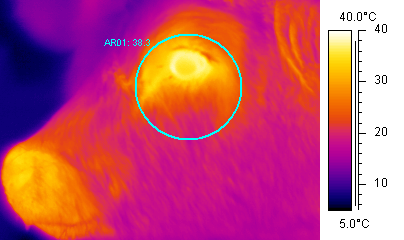

      Infrared images of the calf face provided courtesy of and with permission from the author  Dr. Al Schaefer and Animal Inframetrics Inc. Also, for referenced scientific background the reader is referred to Schaefer et al. 2007. Research in Veterinary Science. 83(3). 376-384. Doi: 10.1016/j.rvsc.2007.01.008.

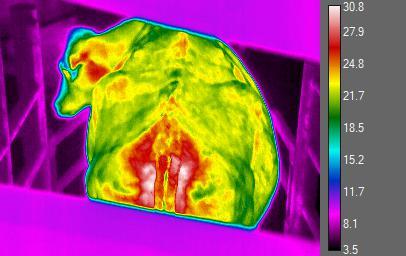

      The dorsal swine images are provided courtesy of and with permission from the author Dr. Al Schaefer and Animal Inframetrics Inc. For Referenced scientific background the reader is referred to J. Behan, N.J. Cook and A.L. Schaefer. 2022. International Pig Topics. 37(1): 24-25.

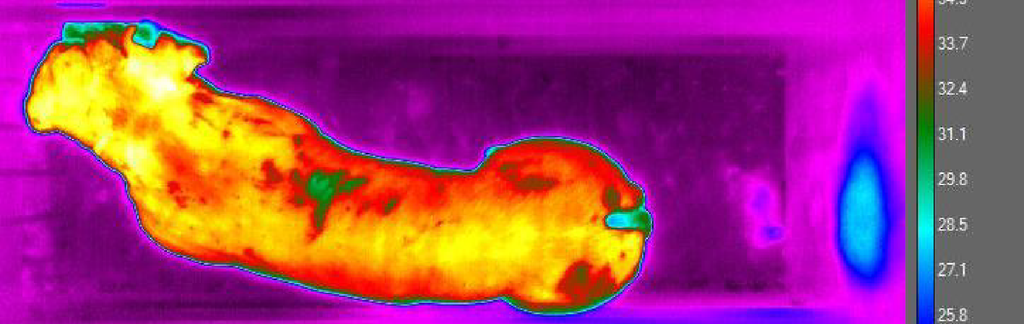

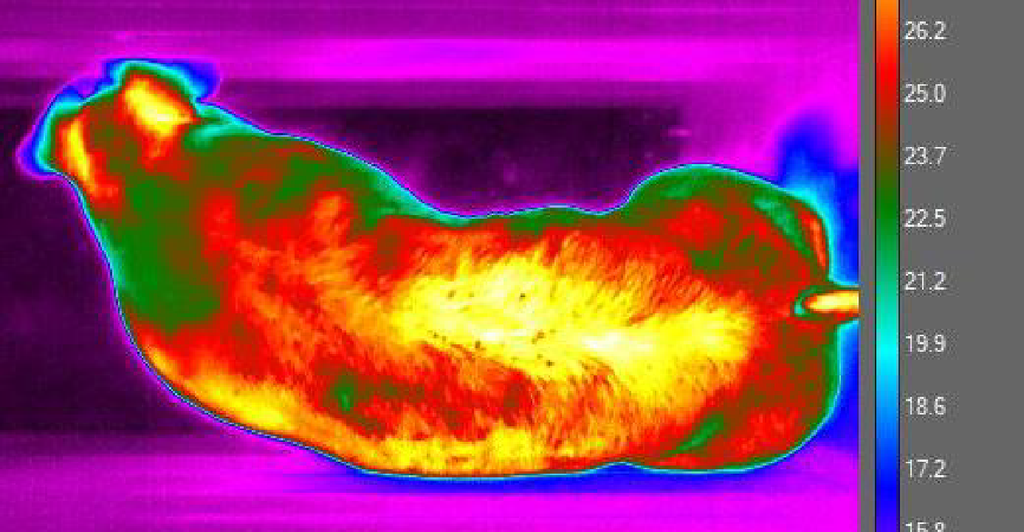

      The pig cluster behaviour images are provided courtesy of and with permission from the author, Dr. N. Cook. For the referenced scientific background the reader is referred to Cook, N.J. et al. 2015. Animal. 9(2): 339-346. Doi: 10.1017/S1751731114002481.
